Product Introduction:

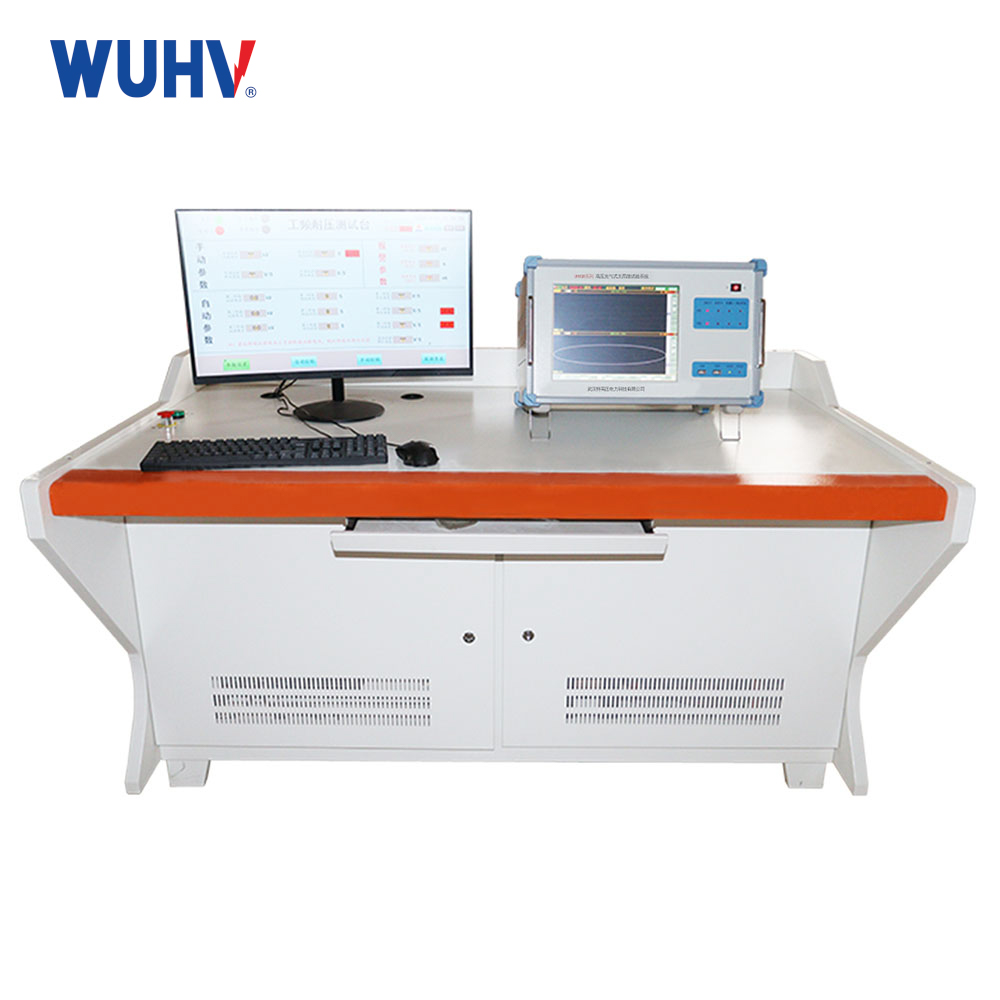

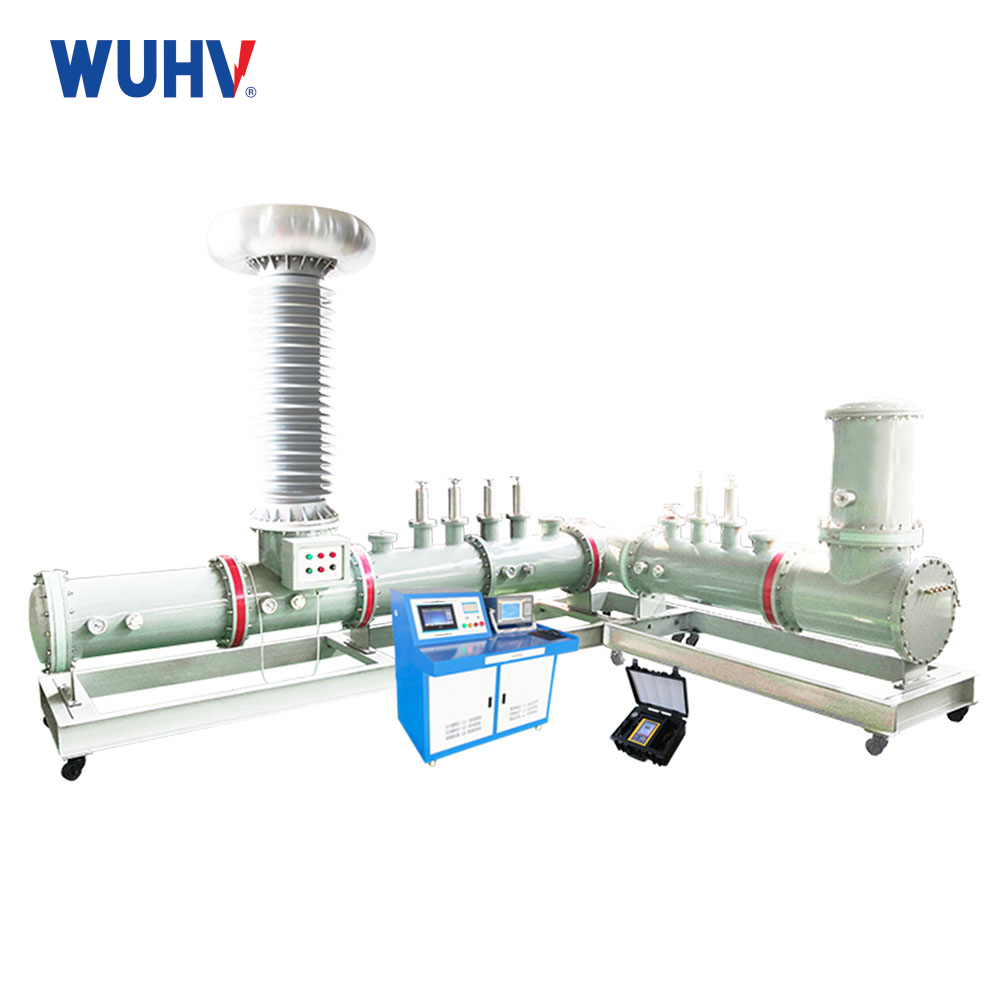

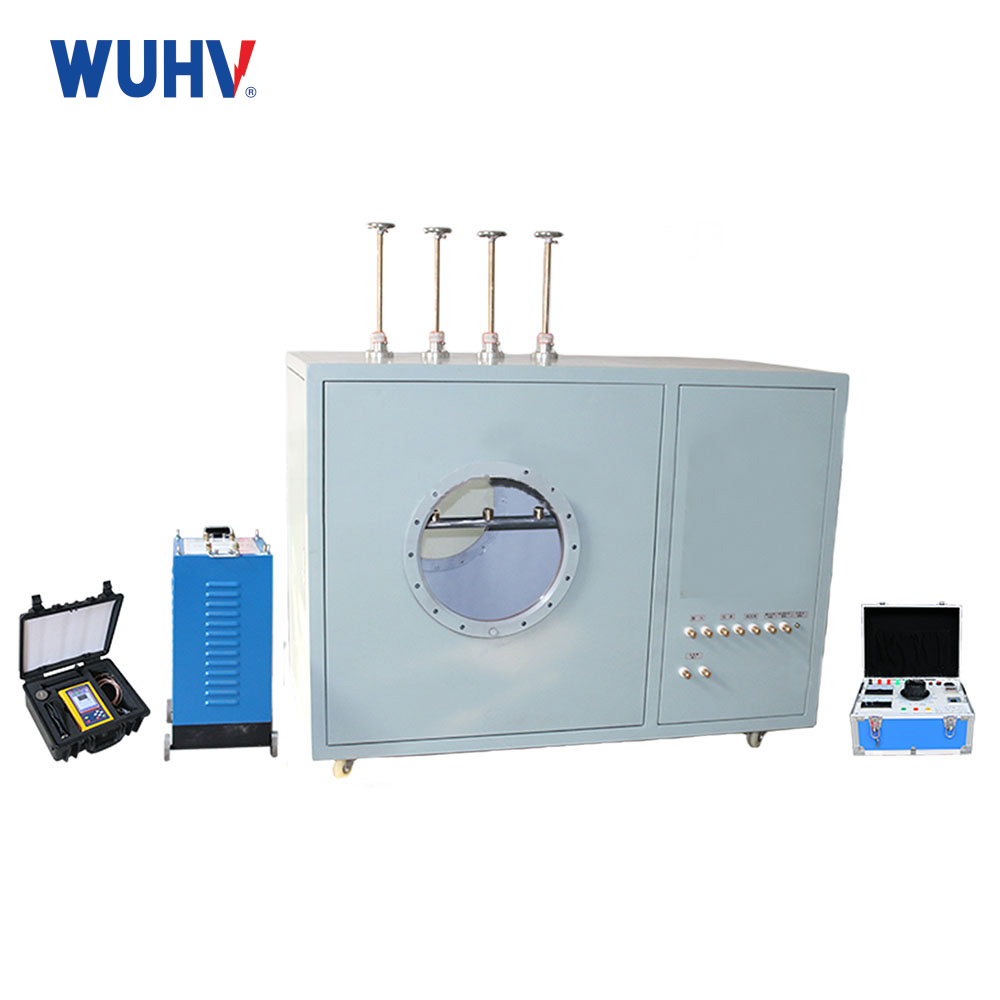

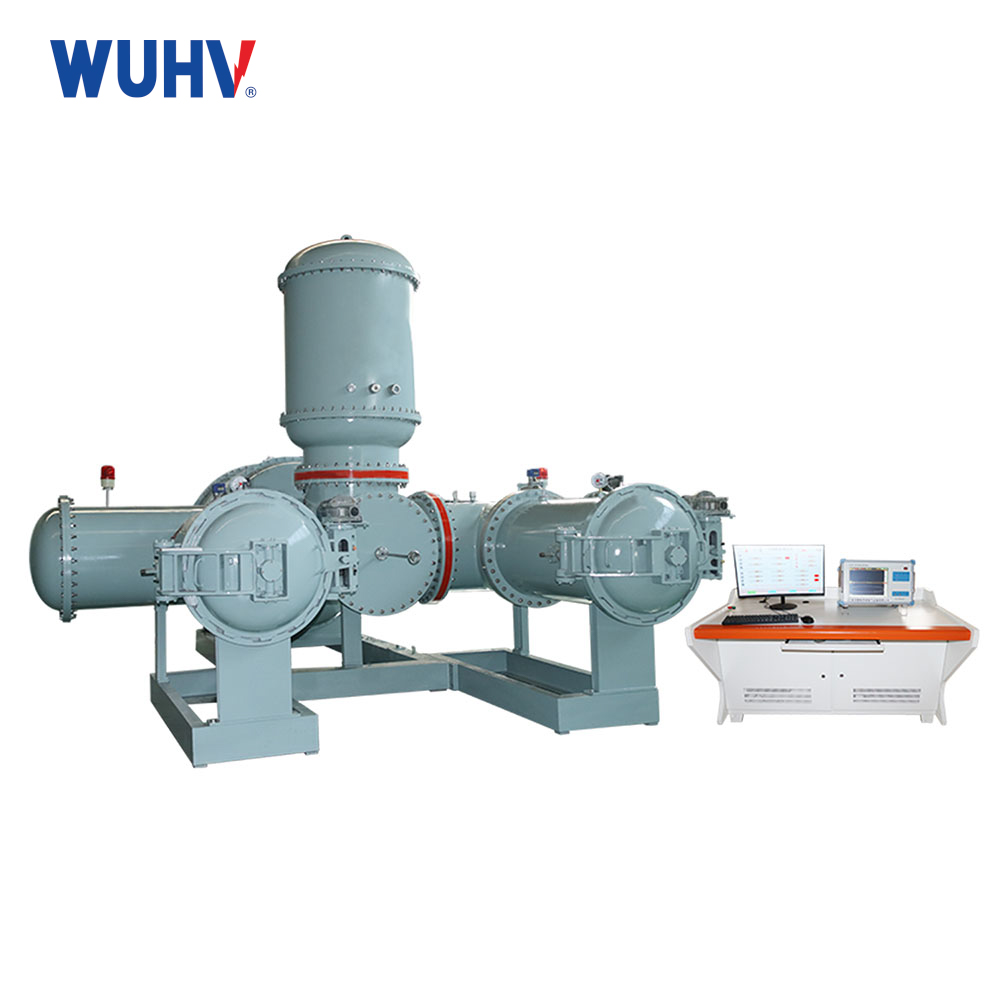

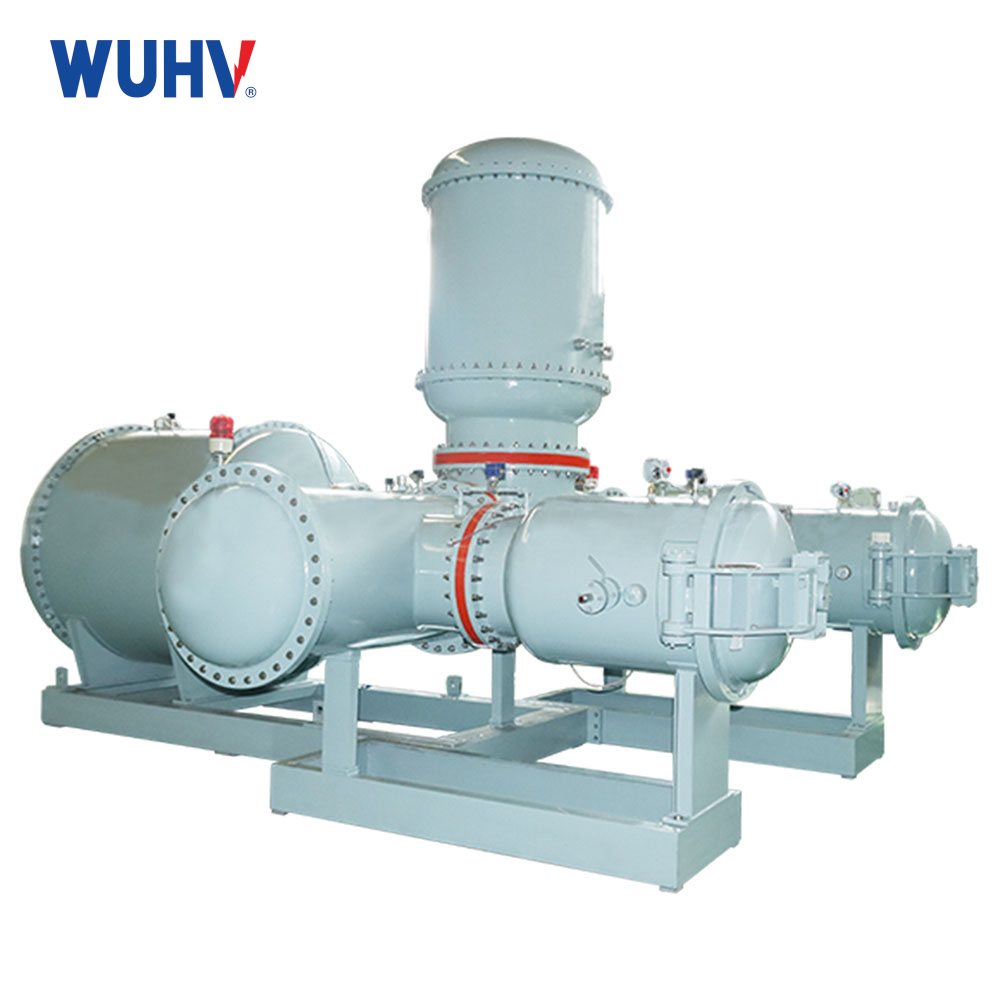

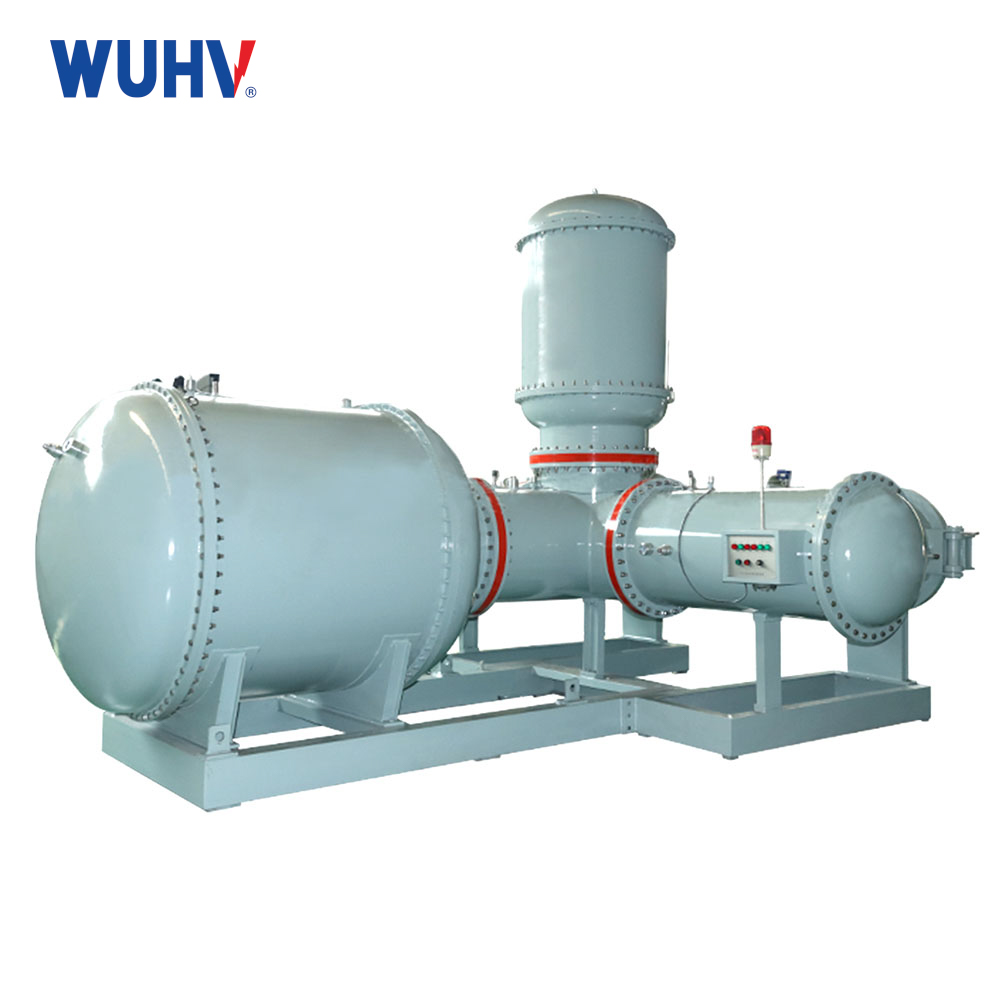

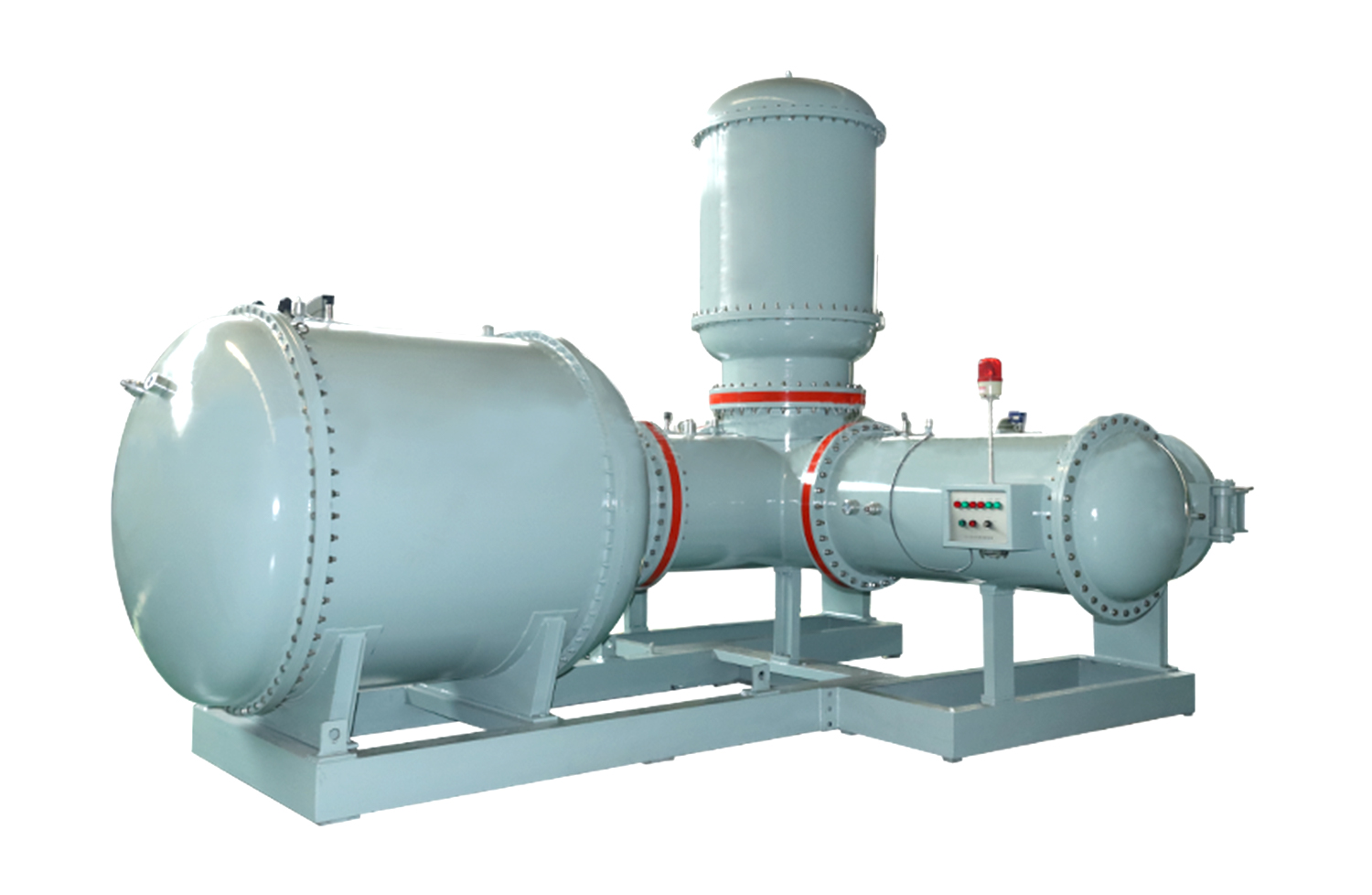

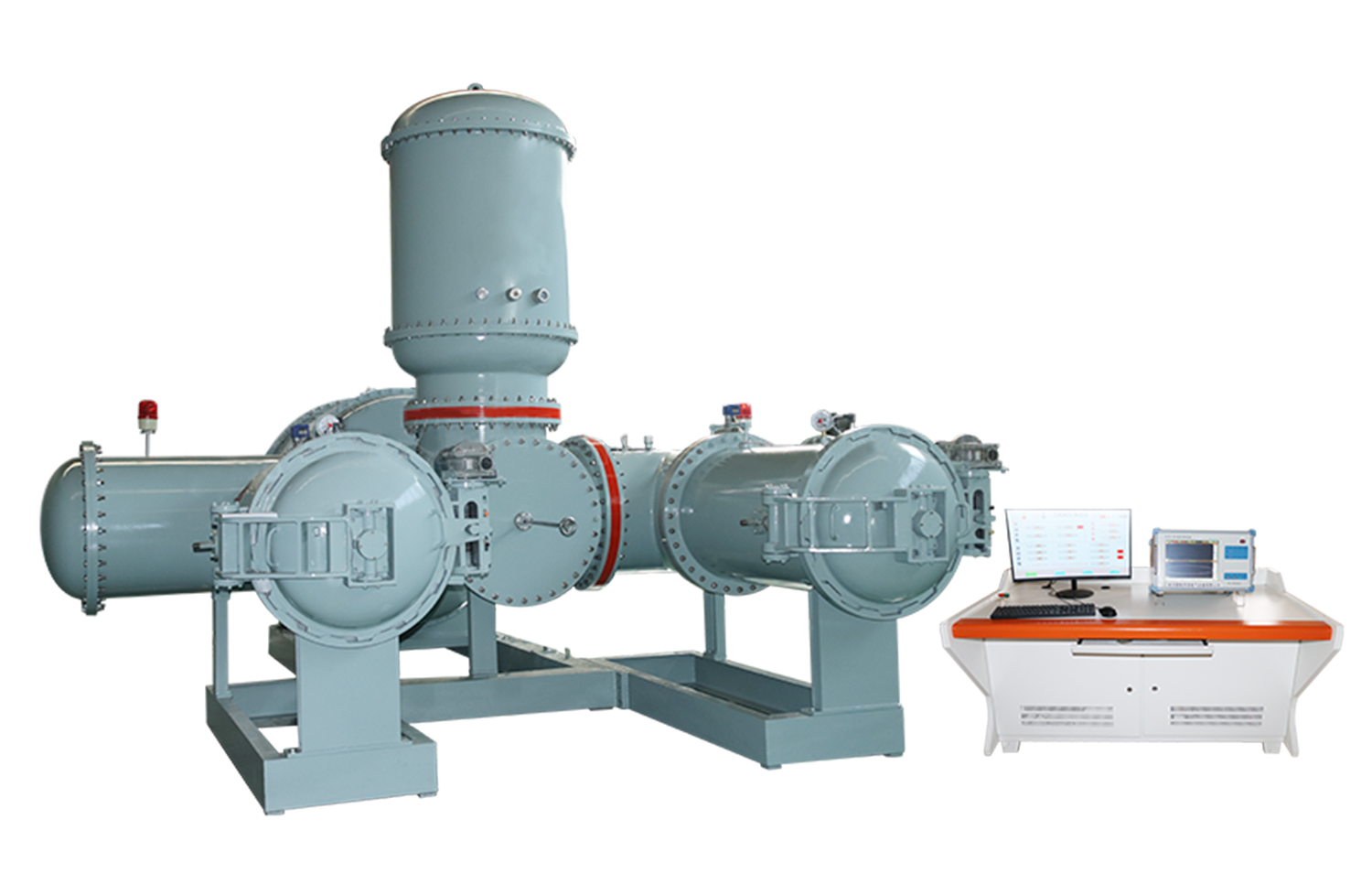

Inflatable non partial discharge test transformer is an essential testing equipment for power equipment detection and preventive testing. Used for insulation withstand voltage testing, partial discharge testing, and precision testing of GIS and GIL power equipment with high voltage and large capacity, as well as GIS transformers
 |
Technical Parameters:
مولفه های | Value |
ظرفیت رتبه بندی شده | 50-1200kVA |
ولتاژ ورودی | 380 ولت |
ولتاژ خروجی | 50-1200kV |
زمان اجرا | ≤5 دقیقه |
دقت اندازه گیری | ≤1.5% |
Partial discharge capacity | ≤5Pc |
Protection function | Overcurrent and voltage protection alarm automatically return to zero |
Product Features:
1. SF6 gas, known for its high insulation strength, is used as the insulating medium.
2. Compact and lightweight design with high-quality craftsmanship, attractive appearance, and ease of handling.
3. Thanks to the arc-extinguishing properties and specialized structural design involving SF6 gas, the partial discharge level is low, measuring ≤5 PC at rated voltage.
4. The testing process is straightforward, intuitive, and user-friendly.
5. Effectively eliminates power supply clutter and interference.
6. Integrates automatic control technology, offering a high level of automation and strong anti-interference capability.
7. Equipped with a fast-acting electronic protection device for enhanced reliability.
Application Scenarios:
GIS equipment testing: Used for withstand voltage and partial discharge testing of GIS gas-insulated switchgear to inspect equipment insulation performance.
GIL transmission line testing: Used for withstand voltage and partial discharge detection of GIL equipment after installation, ensuring safe operation of transmission lines.
Transformer testing: Used for insulation withstand voltage and partial discharge testing of power transformers to identify potential insulation defects.
High-voltage switchgear testing: Used for insulation performance verification of high-voltage switches, circuit breakers, and other equipment.
Substation on-site testing: Used for on-site handover and pre-commissioning testing of equipment in newly built, expanded, or retrofitted substations.
Power equipment factory testing: Used for quality inspection and factory acceptance testing during the production of high-voltage electrical equipment.
Preventive testing: Used for periodic insulation testing of in-service equipment to promptly identify potential fault hazards.
High-voltage laboratory testing: Used for R&D, type testing, and insulation performance research of high-voltage electrical equipment.
Engineering acceptance testing: Used for withstand voltage and partial discharge detection of equipment after completion of power engineering projects, meeting engineering acceptance requirements.
FAQs:
Q: What are the advantages of the gas-insulated design?
A: The gas-insulated design provides good electrical insulation while helping to reduce the overall size and weight of the test system, making it easier to transport and install.
Q: What is the difference between withstand voltage testing and partial discharge testing?
A: Withstand voltage testing evaluates overall insulation strength, while partial discharge testing detects localized insulation defects under high-voltage conditions.
Q: Can the system be used for GIL testing?
A: Yes. The system is suitable for AC withstand voltage and partial discharge testing of GIL (gas-insulated transmission lines), and can be configured according to GIL length, capacitance, and test voltage.
Safety precautions:
1. Set up the venue according to relevant regulations, connect the equipment, and in areas where conditions permit, there should be dedicated personnel responsible for safety on site to provide guidance. Connect the grounding terminal of the control panel to the grounding grid, and connect the grounding terminal of the transformer to the grounding grid, ensuring that both grounding terminals are reliably connected to the same grounding grid.
2. Connect the power cord, turn on the power switch, and press the "emergency stop" button if you need to approach the equipment connected to the test transformer, test sample, etc.
3. After the power is turned on. If it is not at zero position, the system will automatically return to zero position.
4. During the experiment, unrelated items are not allowed to be stacked on or around the equipment panel.
5. Please check the power supply voltage before starting up.
6. When replacing the fuse and accessories, please use the same model as this partial discharge test system supplier.
7. The high voltage inflatable no partial discharge test system should be moisture-proof and oil proof.
8. Please confirm that the tested equipment has been powered off and disconnected from other live devices during the experiment.
